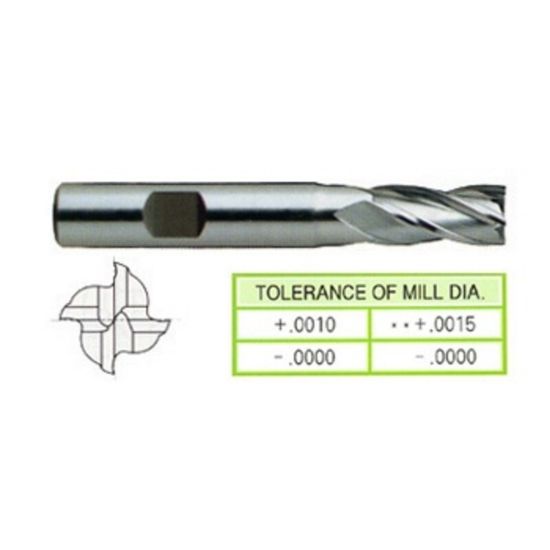

YG-1 16016HN DIA 12MM SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16016HN
Delivery date: 3-5 days
$26.69

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Coating TiN
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.6870 68.25MM
Length Type Standard
Cutter Dia 0.4724 12.00MM
End Of Tool Shape Square
Flutes/Inserts 4
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
