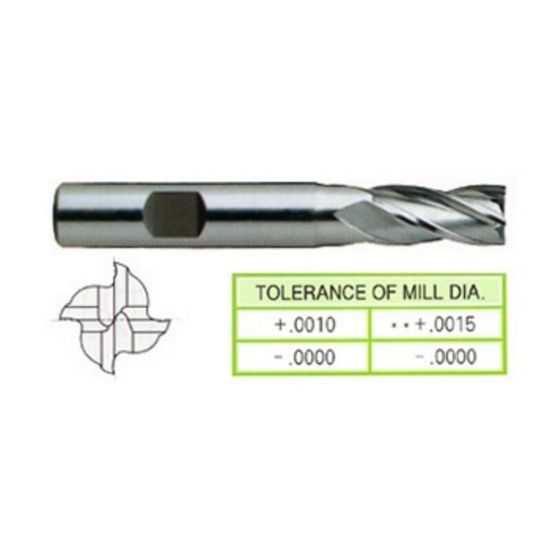

YG-1 16012HN DIA 8MM SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16012HN
Delivery date: 3-5 days
$20.72

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Side Milling, Face Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Tool Material High Speed Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Machine Side Connection Type Weldon
Helix Angle 30°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Cutter Style HSS Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
