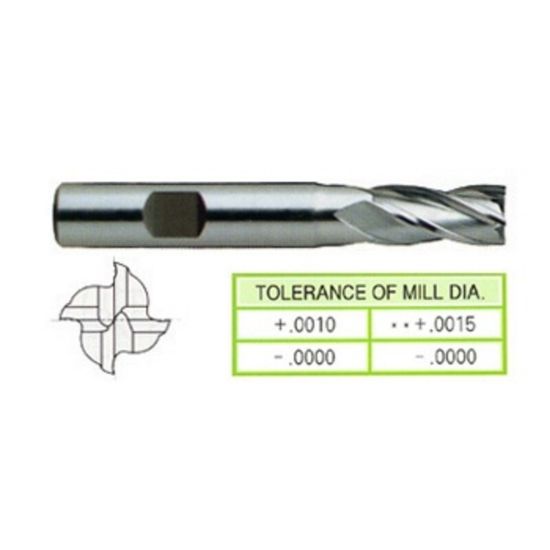

YG-1 16005 DIA 3.50MM SH 0.3750 LOC 0.50 OAL 2.3750 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16005
Delivery date: 3-5 days
$11.92

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Length Of Cut 0.5000 12.70MM
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.1377 3.50MM
Flutes/Inserts 4
Overall Len 2.3750 60.33MM
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
