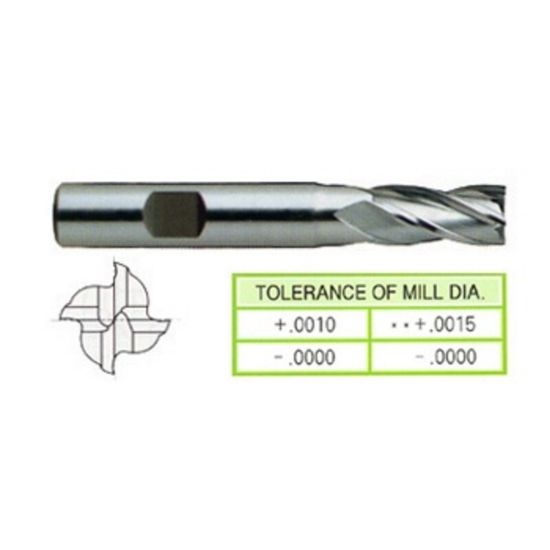

YG-1 16004HN DIA 3MM SH 0.3750 LOC 0.3750 OAL 2.3125 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16004HN
Delivery date: 3-5 days
$31.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 2.3125 58.74MM
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.1181 3.00MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
