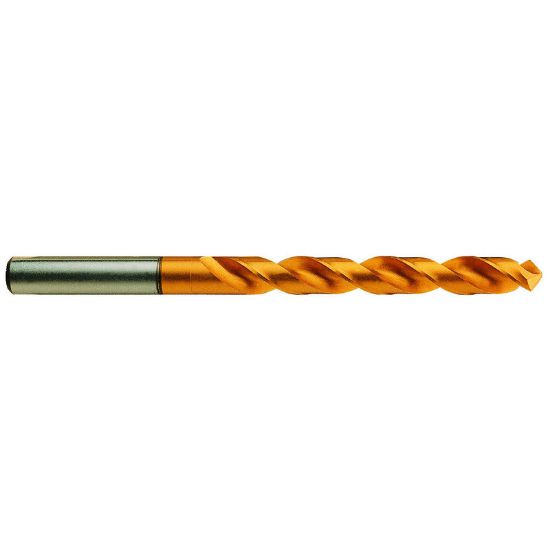

YG-1 1551KCN 15.5MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Jobbers)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG11551KCN
Delivery date: 3-5 days
$111.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Illinois
Package Size 1
Application Drilling
Made In USA No
Dimensional Specifications
Cutter Dia 0.6102 15.50MM
Cut Dia Min 0.6102 15.50MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6102 15.50MM
Flute Length 4.4090 111.99MM
Included Angle 130°
Drill Length Type Jobber
Shank/Pilot Dia 0.6102 15.50MM
Flutes/Inserts 2
Tool Material High Speed Steel
Cut Rating <40HRC Steel, Stainless Steel, Copper
Overall Len 6.7717 172.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
