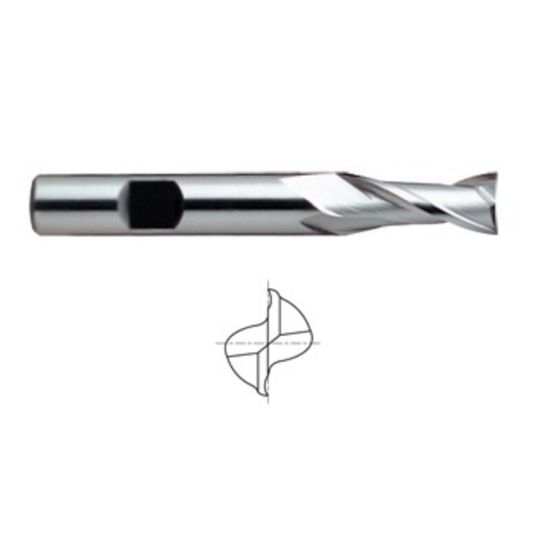

YG-1 1540 DIA 1 SH 1.00 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-01540
Delivery date: 3-5 days
$81.07

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Cutter Dia 1.0000 25.40MM
Helix Angle 30°
Tool Material Powder Metal
Flutes/Inserts 2
Length Type Standard
Overall Len 4.1250 104.78MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
