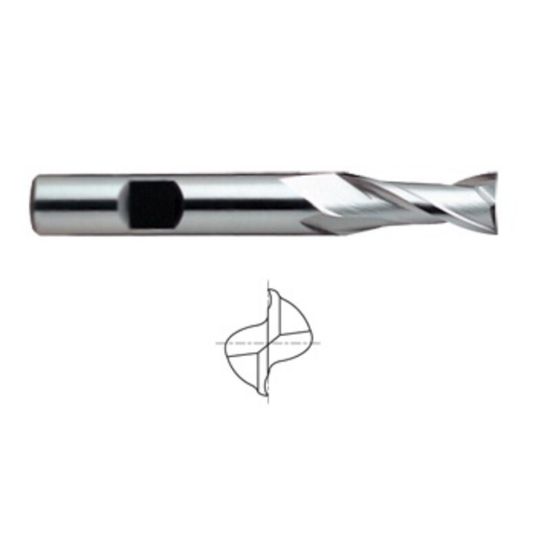

Picture of YG-1 1540 Dia 1 SH 1.00 LOC 1.6250 OAL4.1250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

YG-1 1540 Dia 1 SH 1.00 LOC 1.6250 OAL4.1250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

Part Number: YG-01540

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1212498
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YG-1 Standard Helix End Mill Powder Metal Uncoated Square Sharp Standard Flute Flutes 2 Single End ASP Powder Metal
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.1250 104.78MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
