  • YG-1 1445 DIA 1-1/4 SH 1.2500 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

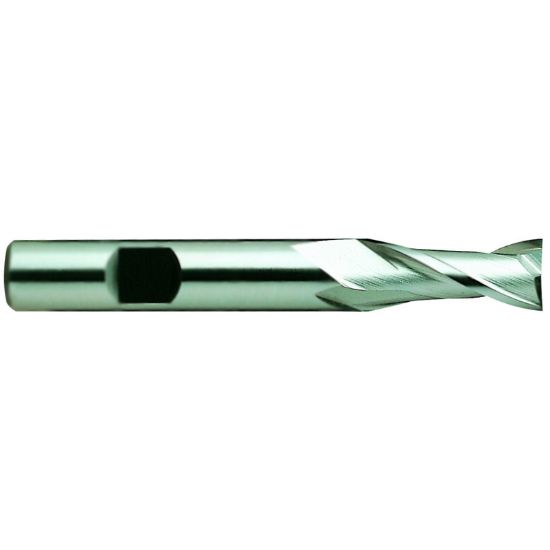

Picture of YG-1 1445 DIA 1-1/4 SH 1.2500 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 1445 DIA 1-1/4 SH 1.2500 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-01445
Delivery date: 3-5 days
$72.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Overall Len 4.1250 104.78MM
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Flutes/Inserts 2
Length Type Standard
Cutter Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Square
Machine Side Connection Size 1.2500 31.75MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
