  • YG-1 14293 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 2.3125 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

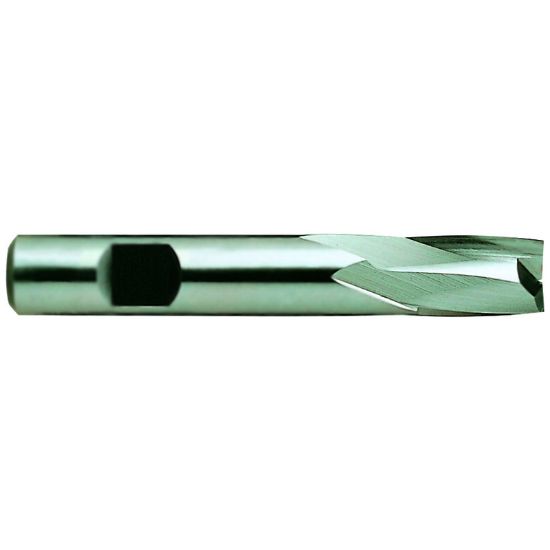

Picture of YG-1 14293 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 2.3125 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 14293 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 2.3125 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-14293
Delivery date: 3-5 days
$12.08

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Key Way CuttIng
Package Size 1
Dimensional Specifications
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3125 58.74MM
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Cutter Style Cobalt Keyway
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
