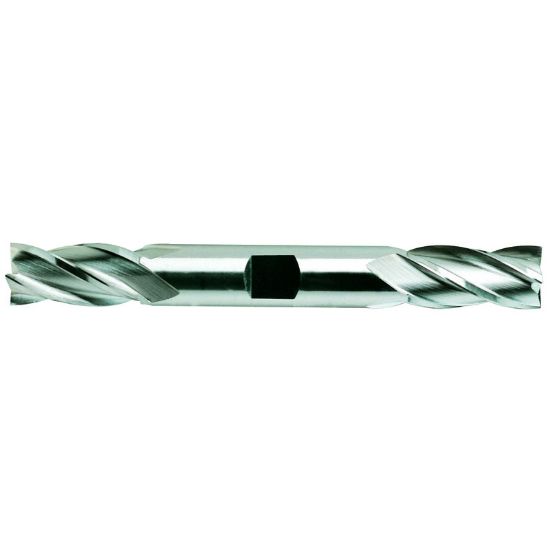

YG-1 13589 DIA 7/16 SH 0.50 LOC 0.8750 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13589
Delivery date: 3-5 days
$68.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating General Performance
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Type Standard
End Of Tool Shape Square
Cutter Style Carbide Finisher
Overall Len 4.0000 101.60MM
Helix Angle 30°
Length Of Cut 0.8750 22.23MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.4375 11.11MM - 7/16
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
