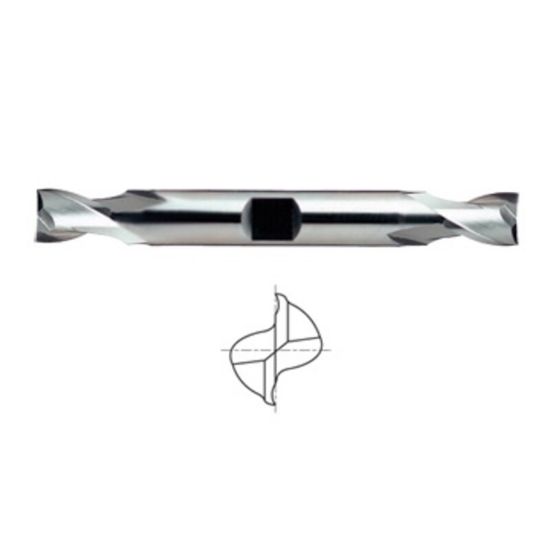

Picture of YG-1 13524 Dia 3/4 SH 0.7500 LOC 1.6250 OAL5.6250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

YG-1 13524 Dia 3/4 SH 0.7500 LOC 1.6250 OAL5.6250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Part Number: YG-13524

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1212987
Vendor: Sussex Tool and Supply
$92.45
YG-1 Standard Helix End Mill Powder Metal Uncoated Square Sharp Standard Flute Flutes 4 Double End ASP Powder Metal
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.7500 19.05MM
Overall Length 5.6250 142.88MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
