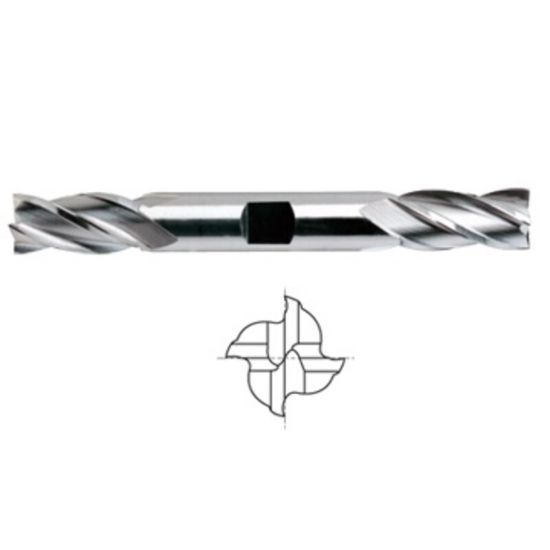

YG-1 13519 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 5.00 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13519
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating High Performance
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Length Of Cut 1.3750 34.93MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 5.0000 127.00MM
Helix Angle 30°
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
