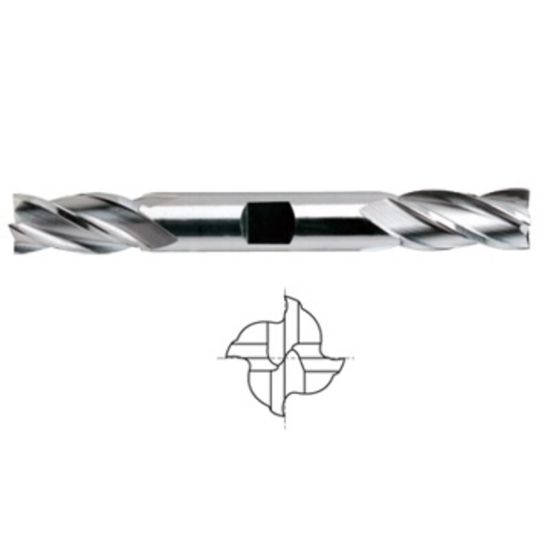

YG-1 13515PH DIA 1/2 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Powder Metal Hardslick Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13515PH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Cutter Dia 0.5000 12.70MM - 1/2
Helix Angle 30°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Single/Double End Double End
Tool Material Powder Metal
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
