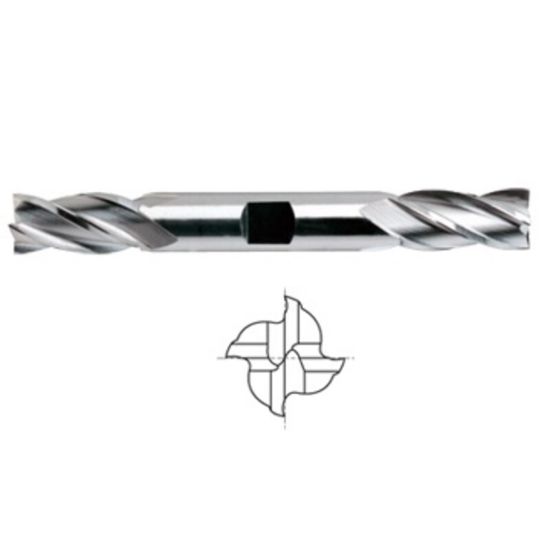

YG-1 13515 DIA 1/2 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13515
Delivery date: 3-5 days
$40.44

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Application Side Milling, Face Milling
Dimensional Specifications
Flutes/Inserts 4
Tool Material Powder Metal
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Single/Double End Double End
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
