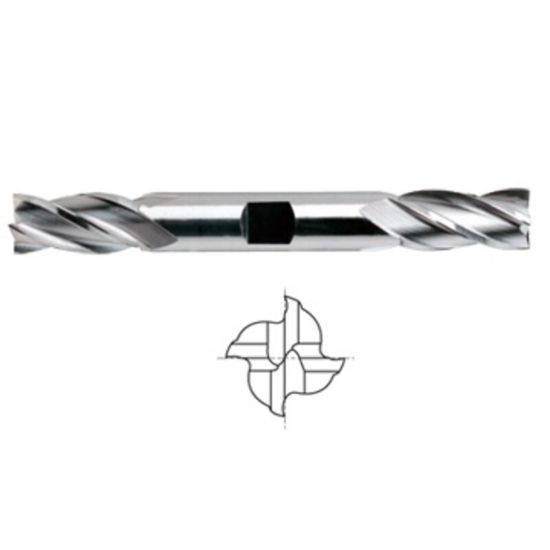

YG-1 13511PH DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Powder Metal Hardslick Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13511PH
Delivery date: 3-5 days
$40.28

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Powder Metal
Inch/Metric Inch
Single/Double End Double End
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Helix Angle 30°
Length Of Cut 0.7500 19.05MM
Machine Side Connection Size 0.3750 9.53MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
