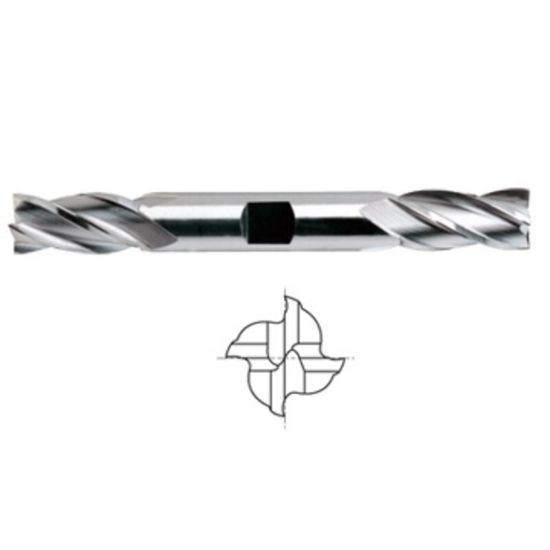

YG-1 13507 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 3.3750 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13507
Delivery date: 3-5 days
$23.65

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Length Of Cut 0.6250 15.88MM
Helix Angle 30°
Machine Side Connection Type Weldon
Overall Len 3.3750 85.73MM
Single/Double End Double End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Powder Metal
Cutter Style Powder Metal Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
