  • YG-1 13394CN DIA 7/8 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

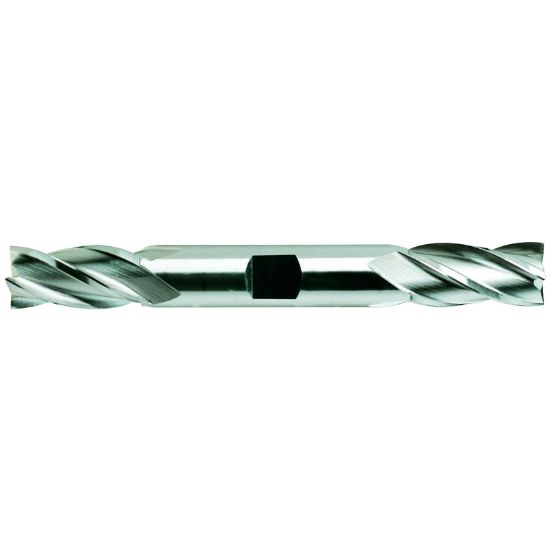

Picture of YG-1 13394CN DIA 7/8 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 13394CN DIA 7/8 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13394CN
Delivery date: 3-5 days
$96.43

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Coating TiN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Flutes/Inserts 4
Inch/Metric Inch
Length Of Cut 1.8750 47.63MM
Length Type Standard
Machine Side Connection Size 0.8750 22.23MM
Overall Len 6.1250 155.58MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Single/Double End Double End
Cutter Dia 0.8750 22.23MM - 7/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
