  • YG-1 13377 DIA 13/16 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

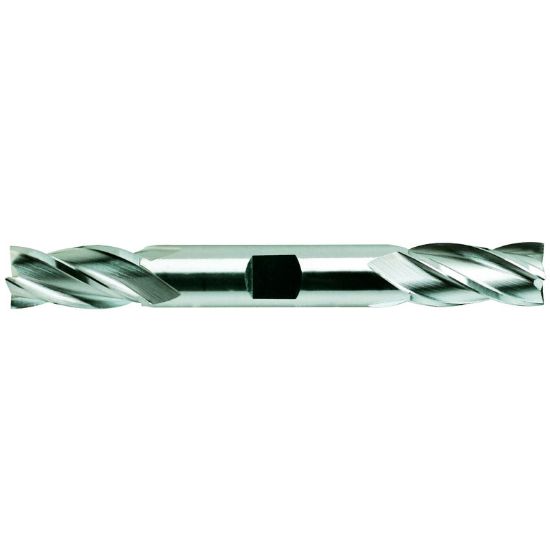

Picture of YG-1 13377 DIA 13/16 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 13377 DIA 13/16 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13377
Delivery date: 3-5 days
$68.68

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.8125 20.64MM - 13/16
Tool Material Cobalt
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.8750 22.23MM
Overall Len 6.1250 155.58MM
End Of Tool Shape Square
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
