  • YG-1 13359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose
Picture of YG-1 13359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

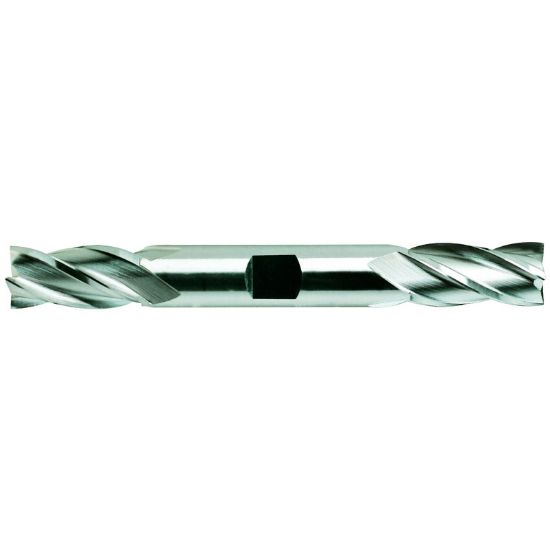

YG-1 13359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13359CN
Delivery date: 3-5 days
$76.45

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.6250 142.88MM
Length Of Cut 1.6250 41.28MM
Flutes/Inserts 4
Length Type Standard
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
