  • YG-1 13319 DIA 31/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

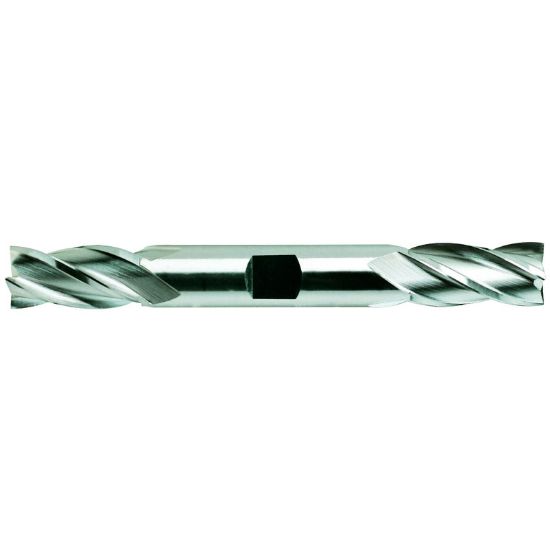

Picture of YG-1 13319 DIA 31/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 13319 DIA 31/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13319
Delivery date: 3-5 days
$27.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.4844 12.30MM - 31/64
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Square
Overall Len 4.1250 104.78MM
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
