  • YG-1 13311CN DIA 27/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

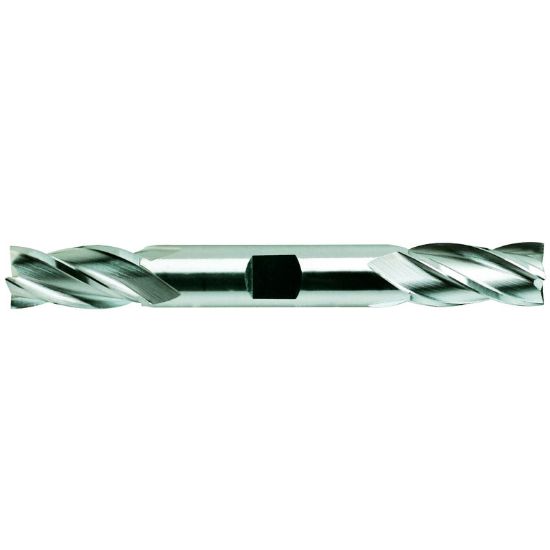

Picture of YG-1 13311CN DIA 27/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

YG-1 13311CN DIA 27/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13311CN
Delivery date: 3-5 days
$45.23

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.0000 25.40MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Overall Len 4.1250 104.78MM
Cutter Dia 0.4219 10.72MM - 27/64
Machine Side Connection Type Weldon
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
