  • YG-1 13307 DIA 25/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

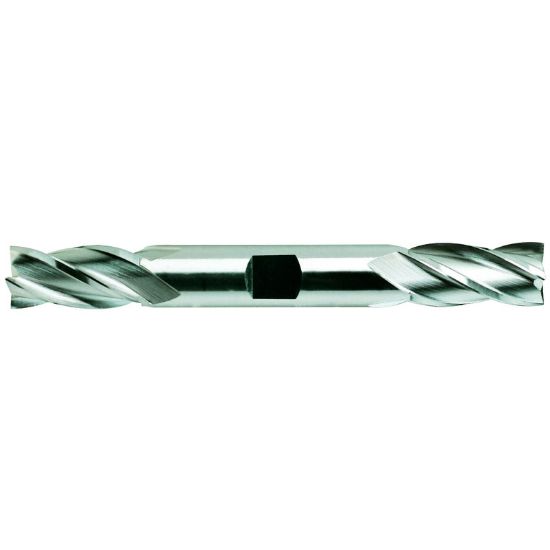

Picture of YG-1 13307 DIA 25/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 13307 DIA 25/64 SH 0.50 LOC 1.00 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13307
Delivery date: 3-5 days
$27.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Type Standard
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.1250 104.78MM
Helix Angle 30°
End Of Tool Shape Square
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.3906 9.92MM - 25/64
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
