  • YG-1 13304 DIA 23/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

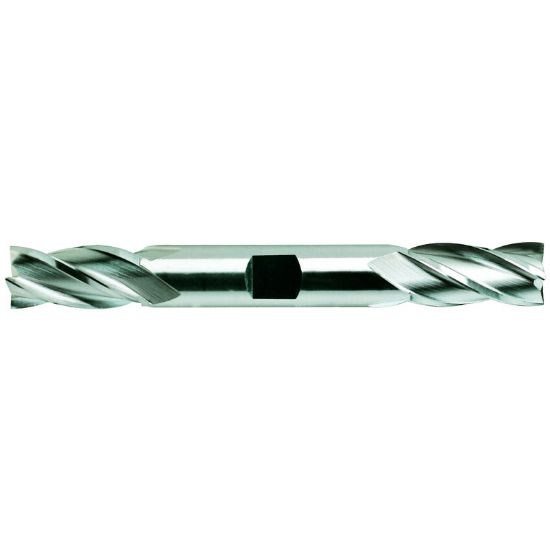

Picture of YG-1 13304 DIA 23/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 13304 DIA 23/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13304
Delivery date: 3-5 days
$18.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 0.7500 19.05MM
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
