  • YG-1 13300 DIA 19/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

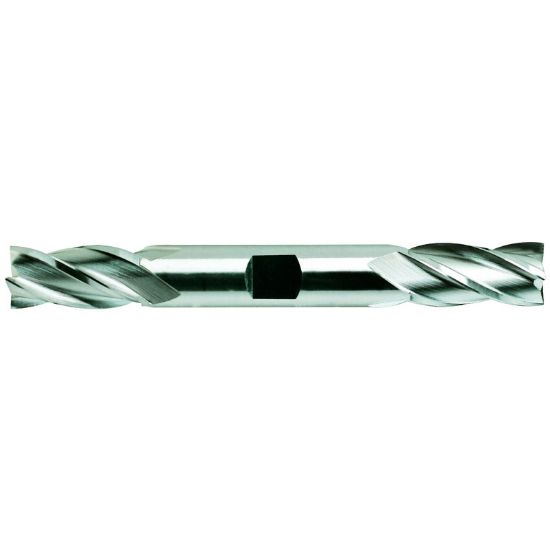

Picture of YG-1 13300 DIA 19/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 13300 DIA 19/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13300
Delivery date: 3-5 days
$18.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Dia 0.2969 7.54MM - 19/64
Machine Side Connection Size 0.3750 9.53MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 0.7500 19.05MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
