  • YG-1 13296 DIA 15/64 SH 0.3750 LOC 0.6250 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

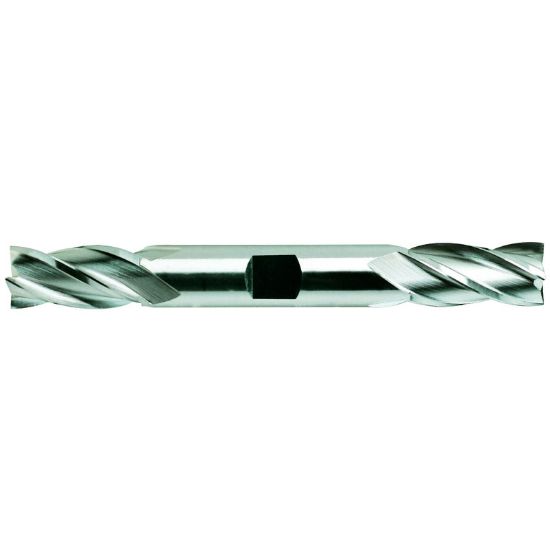

Picture of YG-1 13296 DIA 15/64 SH 0.3750 LOC 0.6250 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 13296 DIA 15/64 SH 0.3750 LOC 0.6250 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13296
Delivery date: 3-5 days
$18.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Cutter Dia 0.2344 5.95MM - 15/64
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Overall Len 3.3750 85.73MM
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
