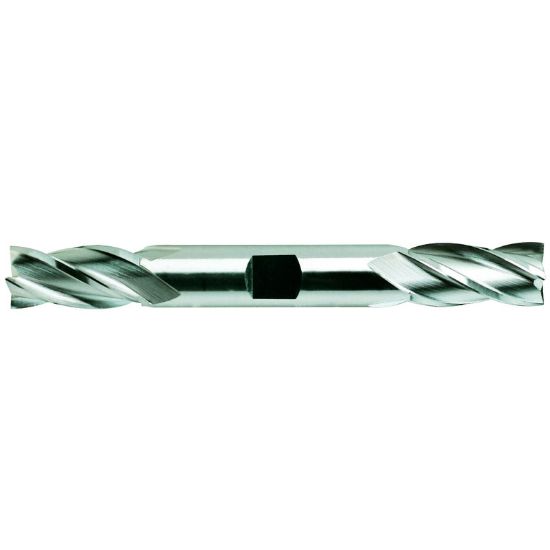

YG-1 13100HN DIA 11/16 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix HSS TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13100HN
Delivery date: 3-5 days
$60.76

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Standard
Cutter Style HSS Finisher
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 30°
End Of Tool Shape Square
Cutter Dia 0.6875 17.46MM - 11/16
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.6250 142.88MM
Length Of Cut 1.6250 41.28MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
