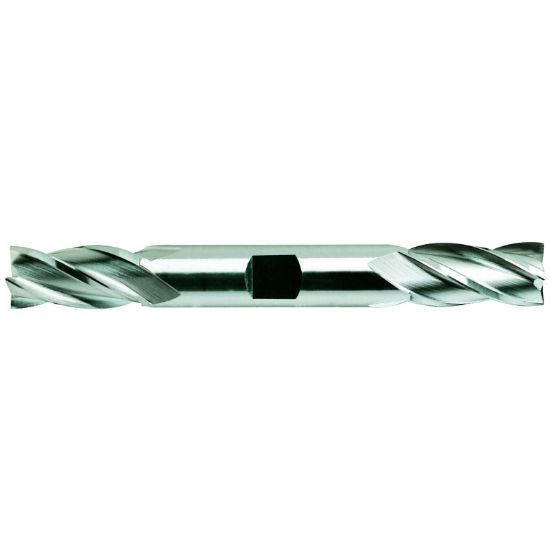

YG-1 13054HN DIA 23/64 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix HSS TiN Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13054HN
Delivery date: 3-5 days
$26.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Coating TiN
Dimensional Specifications
Cutter Style HSS Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Dia 0.3594 9.13MM - 23/64
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
