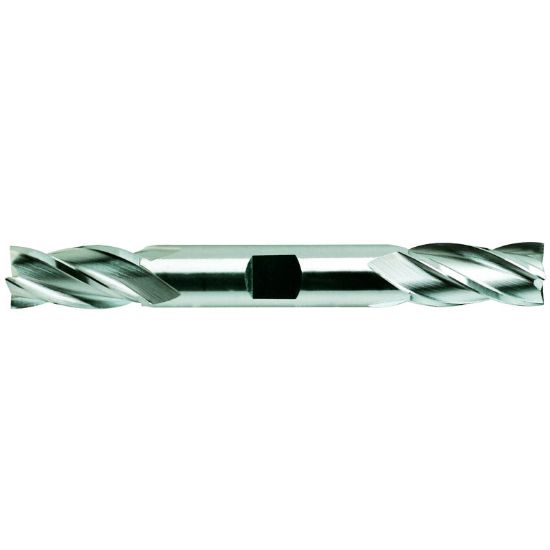

YG-1 13044 DIA 13/64 SH 0.3750 LOC 0.5625 OAL 3.2500 End Mill Standard Flute Standard Helix HSS Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-13044
Delivery date: 3-5 days
$12.45

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.2031 5.16MM - 13/64
Flutes/Inserts 4
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5625 14.29MM
Inch/Metric Inch
Overall Len 3.2500 82.55MM
Cutter Style HSS Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
