  • YG-1 12377 DIA 13/16 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

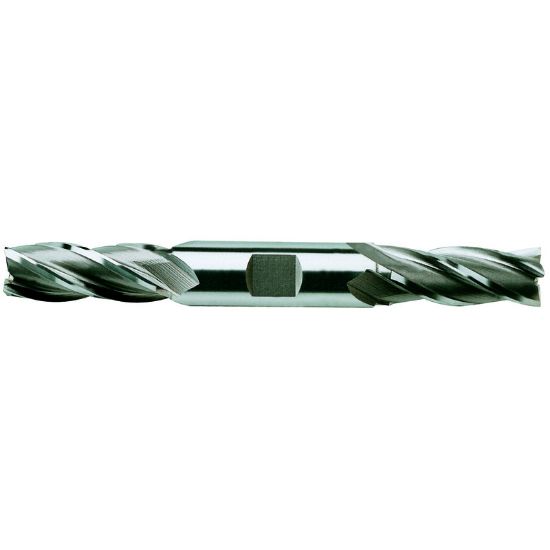

Picture of YG-1 12377 DIA 13/16 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 12377 DIA 13/16 SH 0.8750 LOC 1.8750 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-12377
Delivery date: 3-5 days
$61.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Cutter Dia 0.8125 20.64MM - 13/16
Tool Material Cobalt
Machine Side Connection Size 0.8750 22.23MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 6.1250 155.58MM
End Of Tool Shape Square
Flutes/Inserts 4
Length Of Cut 1.8750 47.63MM
Length Type Standard
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
