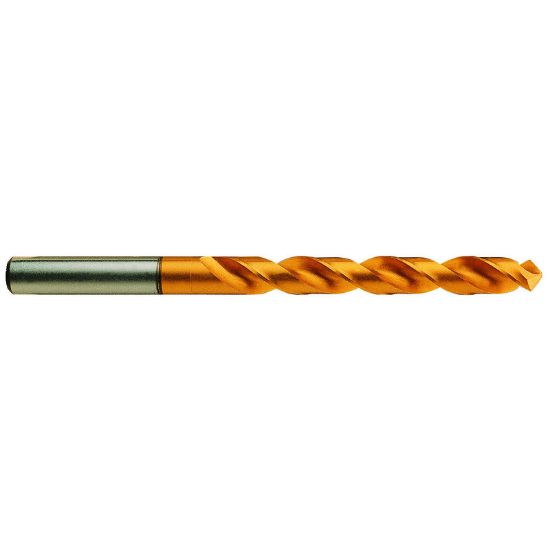

YG-1 1231JCN 12.3MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Stub)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG11231JCN
Delivery date: 3-5 days
$58.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Drill Length Type Stub
Machine Side Connection Size 0.4844 12.30MM
Shank/Pilot Dia 0.4844 12.30MM - 31/64
Overall Len 4.2520 108.00MM
Tool Material High Speed Steel
Flute Length 2.0080 51.00MM
Cutter Dia 0.4842 12.30MM
Cut Dia Min 0.4842 12.30MM
Flutes/Inserts 2
Included Angle 130°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
