  • YG-1 12303 DIA 11/32 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

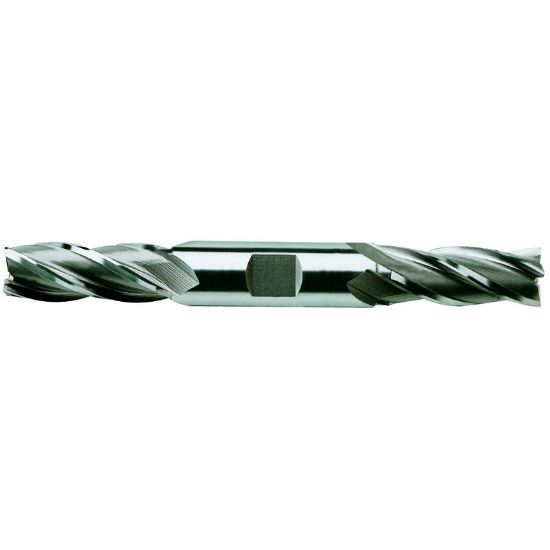

Picture of YG-1 12303 DIA 11/32 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 12303 DIA 11/32 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-12303
Delivery date: 3-5 days
$15.88

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Single/Double End Double End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cutter Dia 0.3438 8.73MM - 11/32
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
