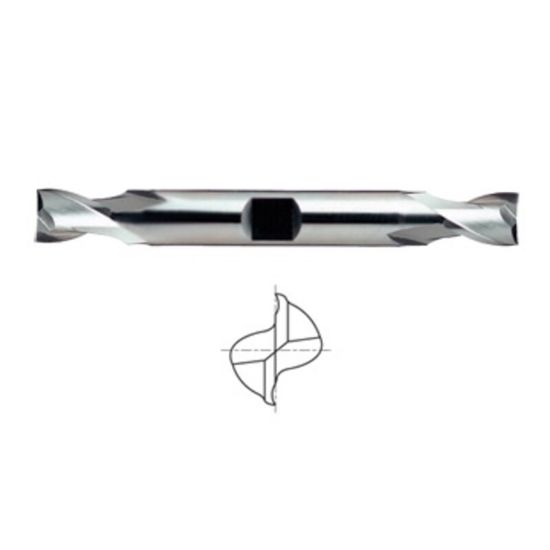

YG-1 11540 DIA 1 SH 1.00 LOC 1.6250 OAL 5.8750 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11540
Delivery date: 3-5 days
$137.79

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutter Dia 1.0000 25.40MM
Length Type Standard
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Tool Material Powder Metal
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Overall Len 5.8750 149.23MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Powder Metal
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
