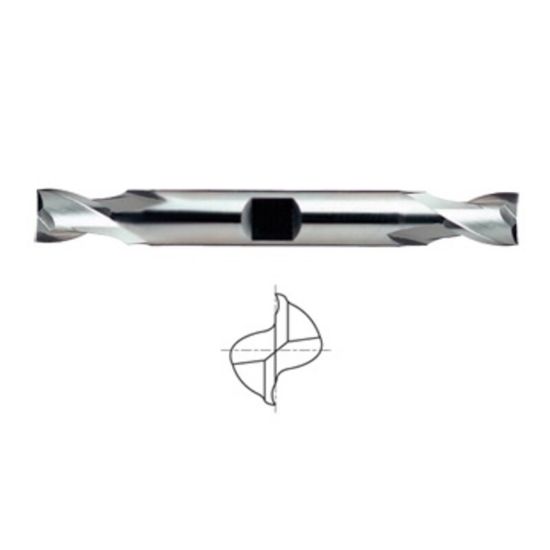

YG-1 11515 DIA 1/2 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11515
Delivery date: 3-5 days
$36.75

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Powder Metal
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Length Of Cut 0.8125 20.64MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
