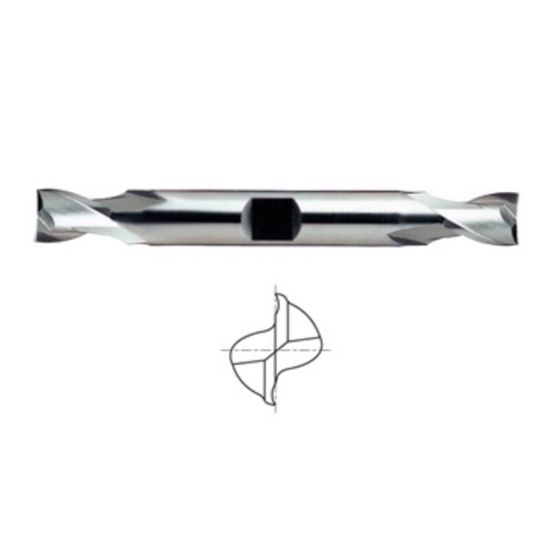

YG-1 11509 DIA 5/16 SH 0.3750 LOC 0.5625 OAL 3.1250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11509
Delivery date: 3-5 days
$22.53

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5625 14.29MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Cutter Dia 0.3125 7.94MM - 5/16
Tool Material Powder Metal
Overall Len 3.1250 79.38MM
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
