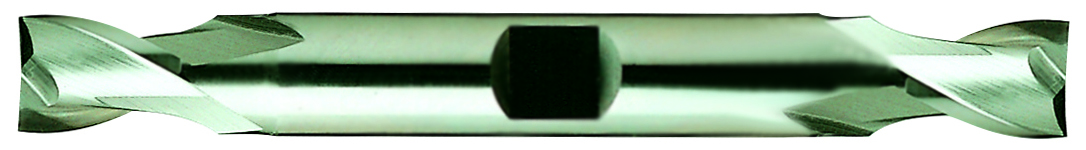

Picture of YG-1 11426CC Dia 1 SH 1.00 LOC 1.6250 OAL5.8750 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Square Sharp General Purpose

YG-1 11426CC Dia 1 SH 1.00 LOC 1.6250 OAL5.8750 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Square Sharp General Purpose

Part Number: YG-11426CC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1201630
Vendor: Sussex Tool and Supply
$130.12
YG-1 Standard Helix End Mill Cobalt TiCN Square Sharp Standard Flute Flutes 2 Double End GENERAL Purpose Cobalt Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.8750 149.23MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Square
Cutter Style Cobalt Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
