  • YG-1 11394 DIA 7/8 SH 0.8750 LOC 1.5625 OAL 5.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

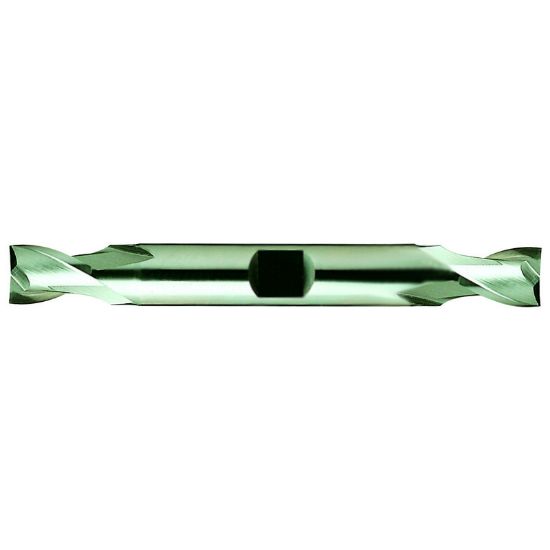

Picture of YG-1 11394 DIA 7/8 SH 0.8750 LOC 1.5625 OAL 5.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 11394 DIA 7/8 SH 0.8750 LOC 1.5625 OAL 5.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11394
Delivery date: 3-5 days
$61.12

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating General Performance
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.8750 22.23MM
Overall Len 5.5000 139.70MM
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Single/Double End Double End
Length Of Cut 1.5625 39.69MM
Length Type Standard
End Of Tool Shape Square
Inch/Metric Inch
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Tool Material Cobalt
Cutter Dia 0.8750 22.23MM - 7/8
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
