  • YG-1 11350 DIA 11/16 SH 0.7500 LOC 1.3125 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

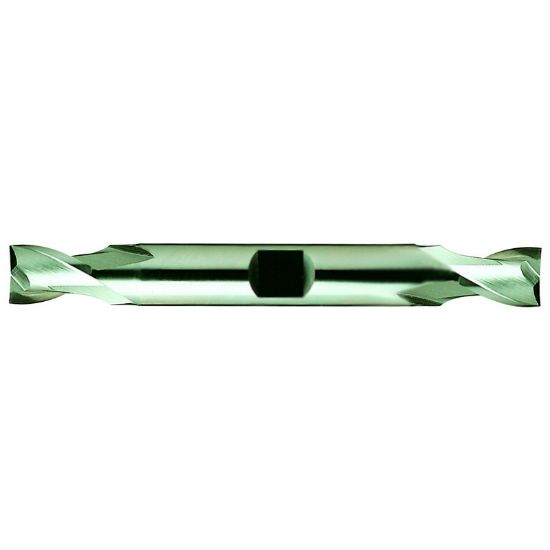

Picture of YG-1 11350 DIA 11/16 SH 0.7500 LOC 1.3125 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 11350 DIA 11/16 SH 0.7500 LOC 1.3125 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11350
Delivery date: 3-5 days
$72.89

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Length Of Cut 1.3125 33.34MM
Cutter Dia 0.6875 17.46MM - 11/16
Machine Side Connection Size 0.7500 19.05MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Cutter Style Cobalt Finisher
Helix Angle 30°
Single/Double End Double End
End Of Tool Shape Square
Inch/Metric Inch
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
