  • YG-1 11321 DIA 1/2 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

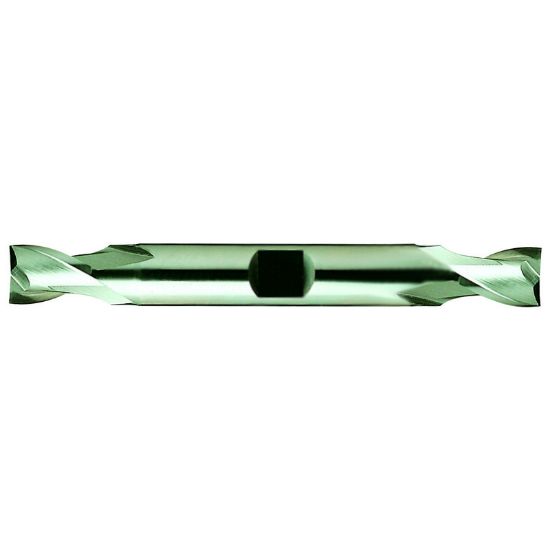

Picture of YG-1 11321 DIA 1/2 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 11321 DIA 1/2 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11321
Delivery date: 3-5 days
$24.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Length Of Cut 0.8125 20.64MM
End Of Tool Shape Square
Helix Angle 30°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
