  • YG-1 11315 DIA 29/64 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

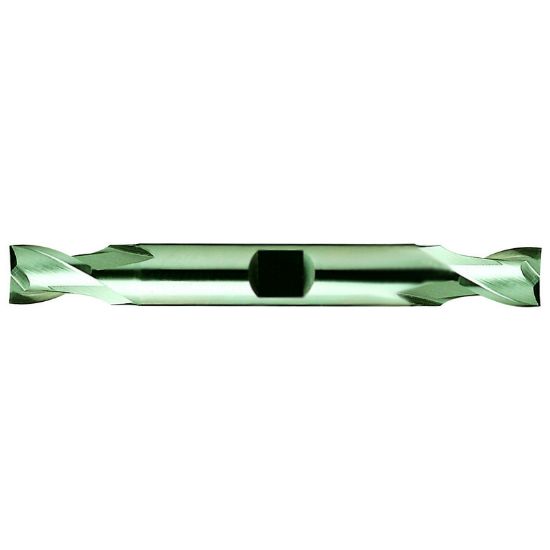

Picture of YG-1 11315 DIA 29/64 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

YG-1 11315 DIA 29/64 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-11315
Delivery date: 3-5 days
$25.93

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Style Cobalt Finisher
Helix Angle 30°
Single/Double End Double End
Cutter Dia 0.4531 11.51MM - 29/64
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Length Of Cut 0.8125 20.64MM
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
