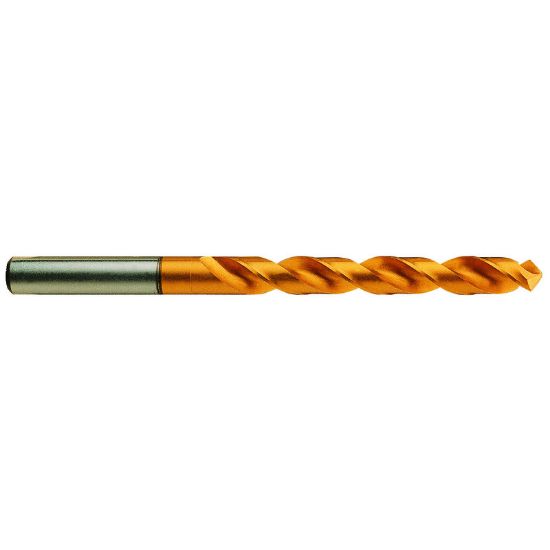

YG-1 0971KCN 9.7MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Jobbers)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10971KCN
Delivery date: 3-5 days
$41.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Coating TiN
Dimensional Specifications
Cutter Dia 0.3819 9.70MM
Cut Dia Min 0.3819 9.70MM
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Size 0.3819 9.70MM
Overall Len 5.3937 137.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3819 9.70MM
Flute Length 3.4250 87.00MM
Included Angle 130°
Drill Length Type Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
