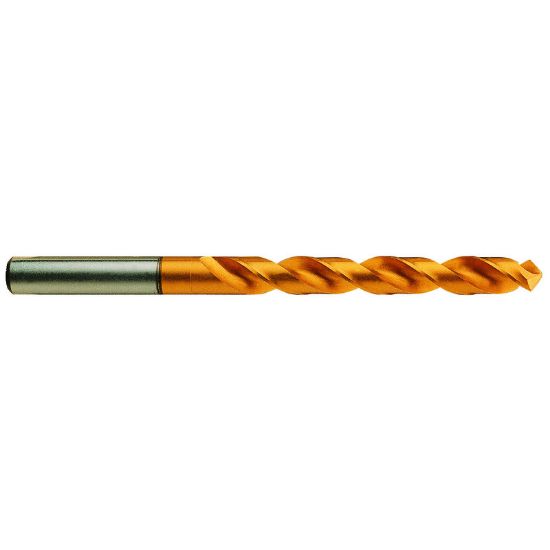

YG-1 0961JCN 9.6MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Stub)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10961JCN
Delivery date: 3-5 days
$36.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Application Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.3780 9.60MM
Flutes/Inserts 2
Machine Side Connection Size 0.3780 9.60MM
Drill Length Type Stub
Cut Dia Min 0.3780 9.60MM
Tool Material High Speed Steel
Overall Len 3.6614 93.00MM
Flute Length 1.6930 43.00MM
Included Angle 130°
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3780 9.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
