  • YG-1 09426CN DIA 1 SH 1.00 LOC 6.00 OAL 8.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

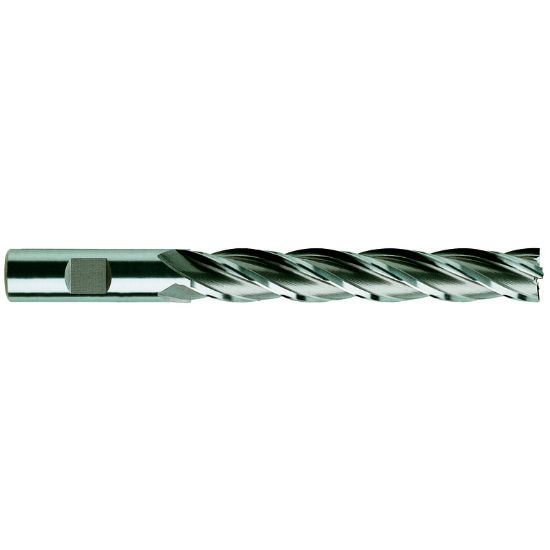

Picture of YG-1 09426CN DIA 1 SH 1.00 LOC 6.00 OAL 8.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 09426CN DIA 1 SH 1.00 LOC 6.00 OAL 8.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-09426CN
Delivery date: 3-5 days
$130.23

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Coating TiN
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Flutes/Inserts 4
Length Of Cut 6.0000 152.40MM
Length Type Extra Long
Machine Side Connection Size 1.0000 25.40MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Machine Side Connection Type Weldon
Overall Len 8.5000 215.90MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
