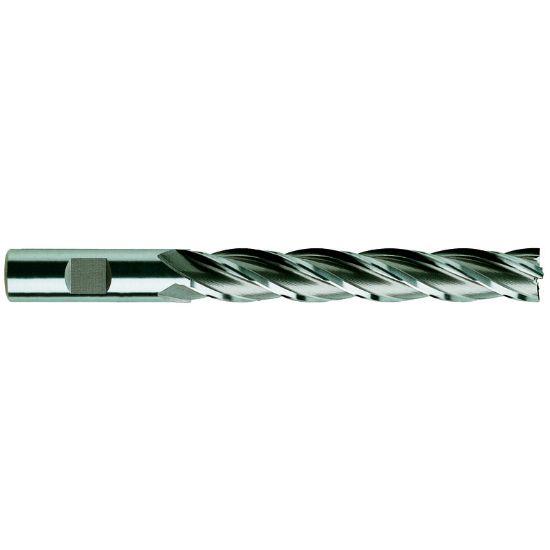

YG-1 09338CC DIA 5/8 SH 0.6250 LOC 4.00 OAL 6.1250 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-09338CC
Delivery date: 3-5 days
$74.75

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Slot Milling, Face Milling
Coating TiCN
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 4.0000 101.60MM
Length Type Extra Long
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Helix Angle 30°
Overall Len 6.1250 155.58MM
End Of Tool Shape Square
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
