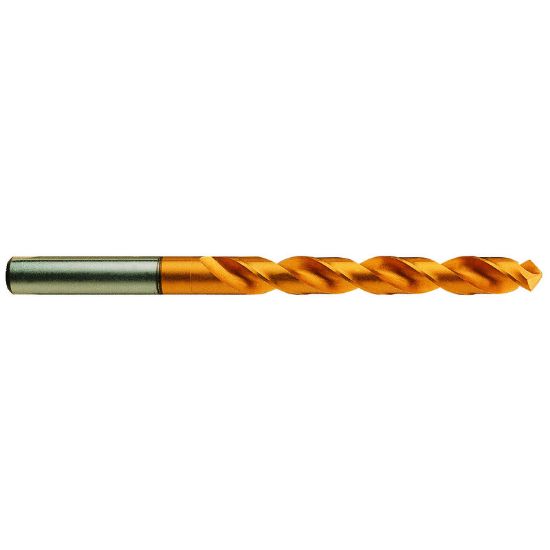

YG-1 0931JCN 9.3MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Stub)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10931JCN
Delivery date: 3-5 days
$32.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Coating TiN
Application Drilling
Shipping State Illinois
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel, Copper
Shank/Pilot Dia 0.3661 9.30MM
Overall Len 3.5433 90.00MM
Tool Material High Speed Steel
Flutes/Inserts 2
Flute Length 1.5750 40.01MM
Cutter Dia 0.3661 9.30MM
Machine Side Connection Size 0.3661 9.3MM
Drill Length Type Stub
Cut Dia Min 0.3661 9.30MM
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
