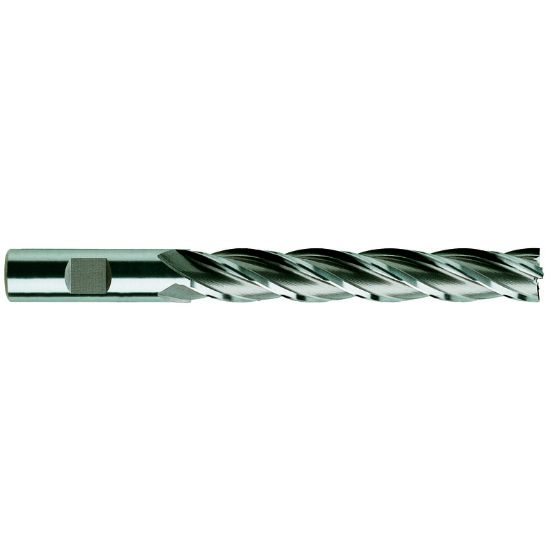

YG-1 09144HE DIA 7/8 SH 0.8750 LOC 5.00 OAL 7.2500 End Mill Standard Flute Standard Helix HSS TiAlN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-09144HE
Delivery date: 3-5 days
$108.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating General Performance
Application Side Milling, Face Milling
Package Size 1
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.8750 22.23MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Tool Material High Speed Steel
Overall Len 7.2500 184.15MM
Flutes/Inserts 4
Length Of Cut 5.0000 127.00MM
End Of Tool Shape Square
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Length Type Extra Long
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Cutter Dia 0.8750 22.23MM - 7/8
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
