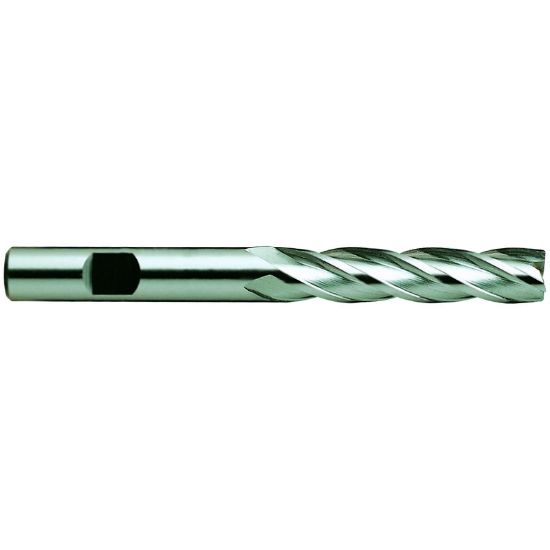

YG-1 08145HN DIA 7/8 SH 0.8750 LOC 3.50 OAL 5.7500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08145HN
Delivery date: 3-5 days
$77.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Overall Len 5.7500 146.05MM
Length Of Cut 3.5000 88.90MM
Inch/Metric Inch
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Square
Cutter Dia 0.8750 22.23MM - 7/8
Machine Side Connection Type Weldon
Flutes/Inserts 6
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
