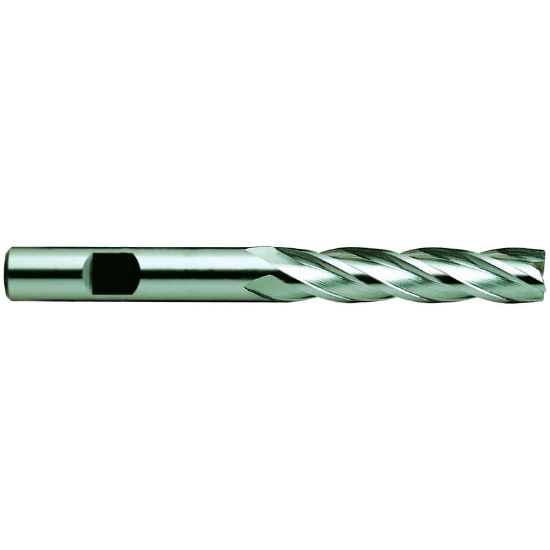

YG-1 08144HN DIA 7/8 SH 0.8750 LOC 3.50 OAL 5.7500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08144HN
Delivery date: 3-5 days
$77.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Tool Material High Speed Steel
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Overall Len 5.7500 146.05MM
Length Of Cut 3.5000 88.90MM
Inch/Metric Inch
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.8750 22.23MM - 7/8
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
