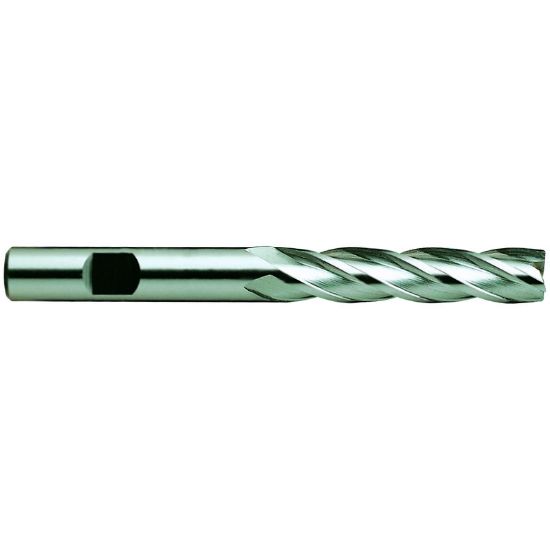

YG-1 08109HN DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08109HN
Delivery date: 3-5 days
$61.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Style HSS Finisher
Single/Double End Single End
Helix Angle 30°
Overall Len 5.2500 133.35MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Square
Tool Material High Speed Steel
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
