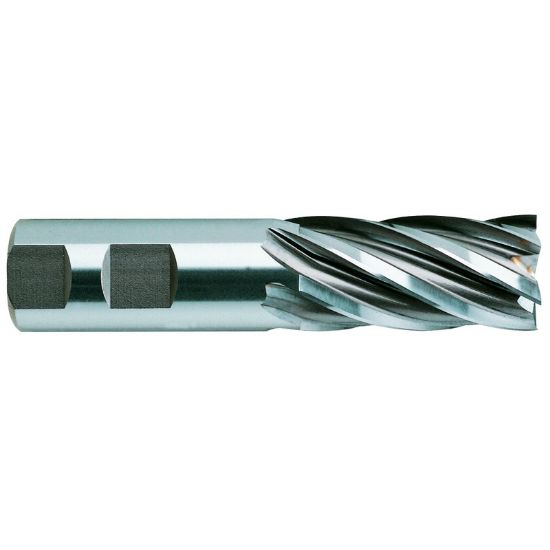

Picture of YG-1 07436CN DIA 1-1/8 SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 07436CN DIA 1-1/8 SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07436CN
Delivery date: 3-5 days
$95.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Cutter Dia 1.1250 28.58MM - 1-1/8
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Helix Angle 30°
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
