  • YG-1 07321CH DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

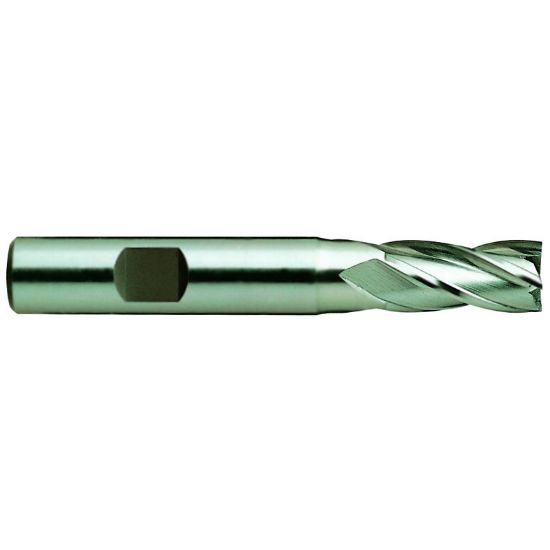

Picture of YG-1 07321CH DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

YG-1 07321CH DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07321CH
Delivery date: 3-5 days
$37.21

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
